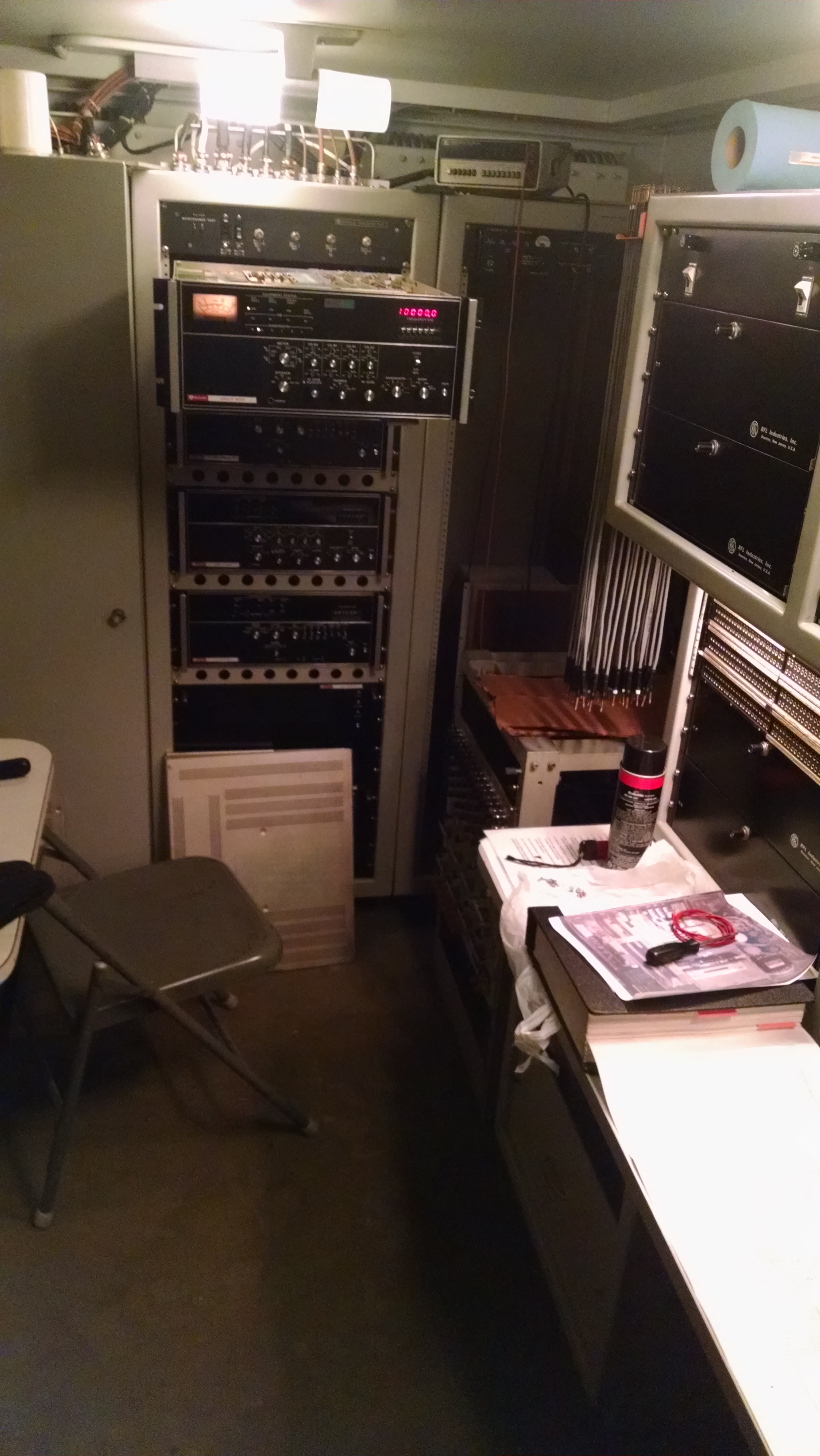

From the door looking toward the radio rack. In this photo, the number 1 receiver has been pulled out for troubleshooting. The control console is on the right. The small short equipment rack seen juts past the console is -not- standard equipment and will be moved out of the facility when the weather gets better. It currently holds set of STU-5 signalling units. A set is normally mounted below the console on the left site, but the ones that come with this van are missing, and those in the rack are not the same. Since I don't plan on using them, I'll simply move them out.
