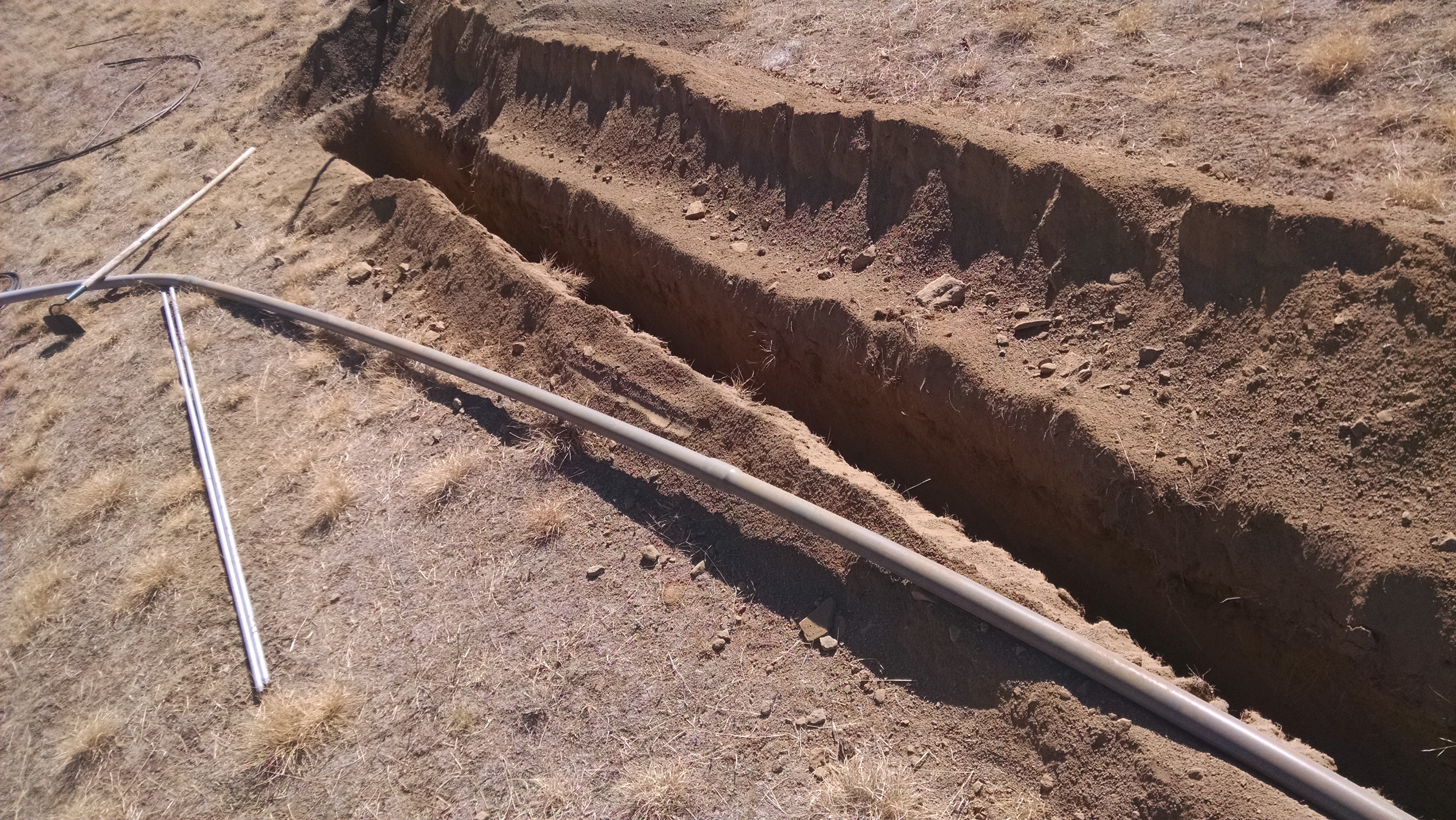

I used 1-3/4" PVC electrical conduit to run the wires in to supply power from the existing breaker panel to the service disconnect
