W7TSC Photo Gallery

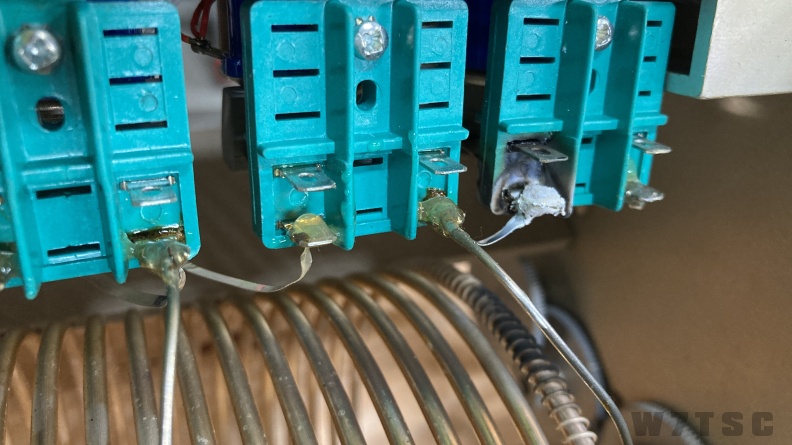

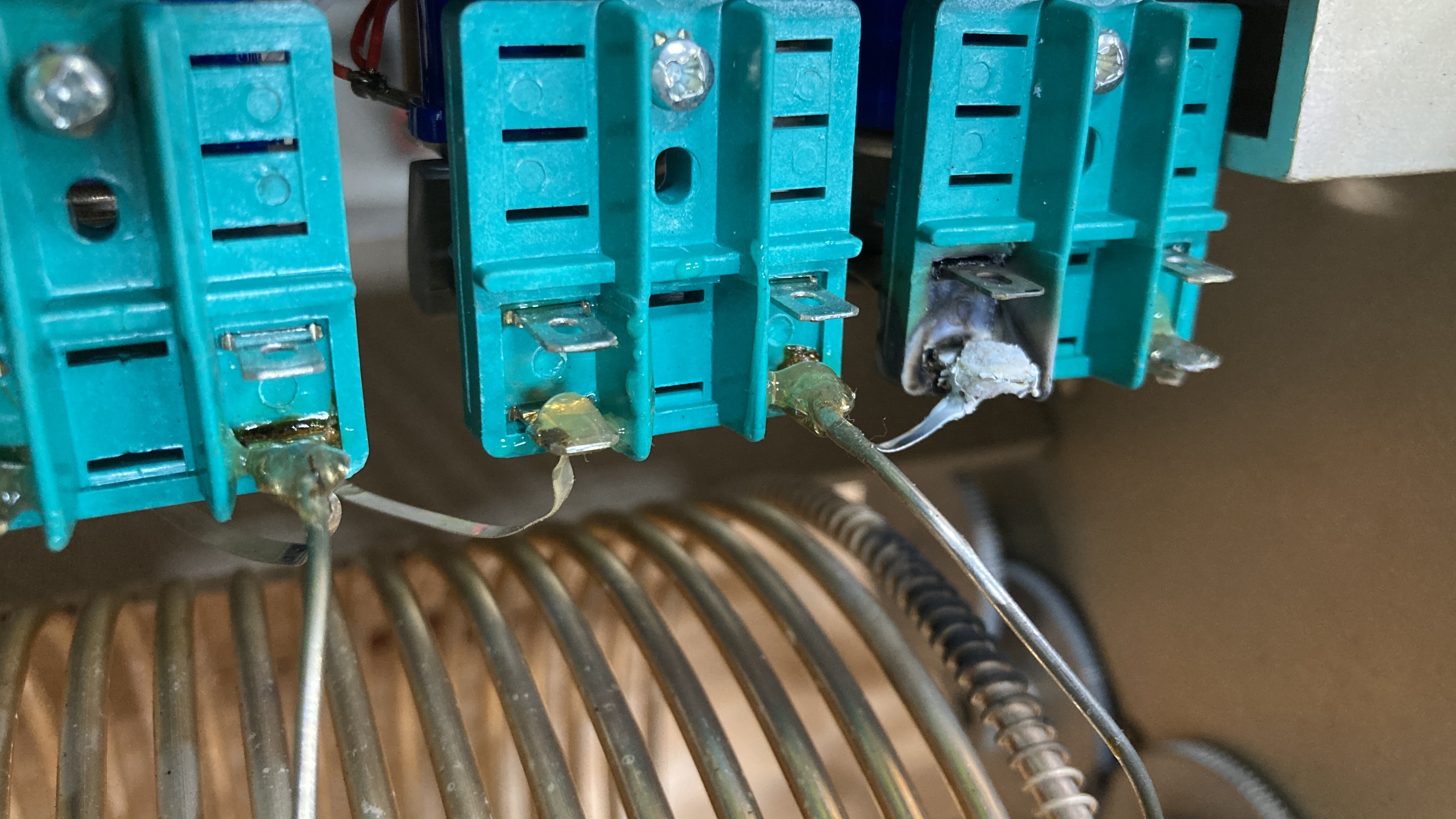

Visual inspection of the coil assembly rapidly revealed a burnt contact on relay K1. This is the first relay in the grounding system to the tuning coil.
