Replacing Fuse F5 with a Breaker

IMG_20191111_185641826.jpg Receiver Block DiagramThumbnailsStatus LEDsReceiver Block DiagramThumbnailsStatus LEDsReceiver Block DiagramThumbnailsStatus LEDsReceiver Block DiagramThumbnailsStatus LEDsReceiver Block DiagramThumbnailsStatus LEDsReceiver Block DiagramThumbnailsStatus LEDsReceiver Block DiagramThumbnailsStatus LEDs

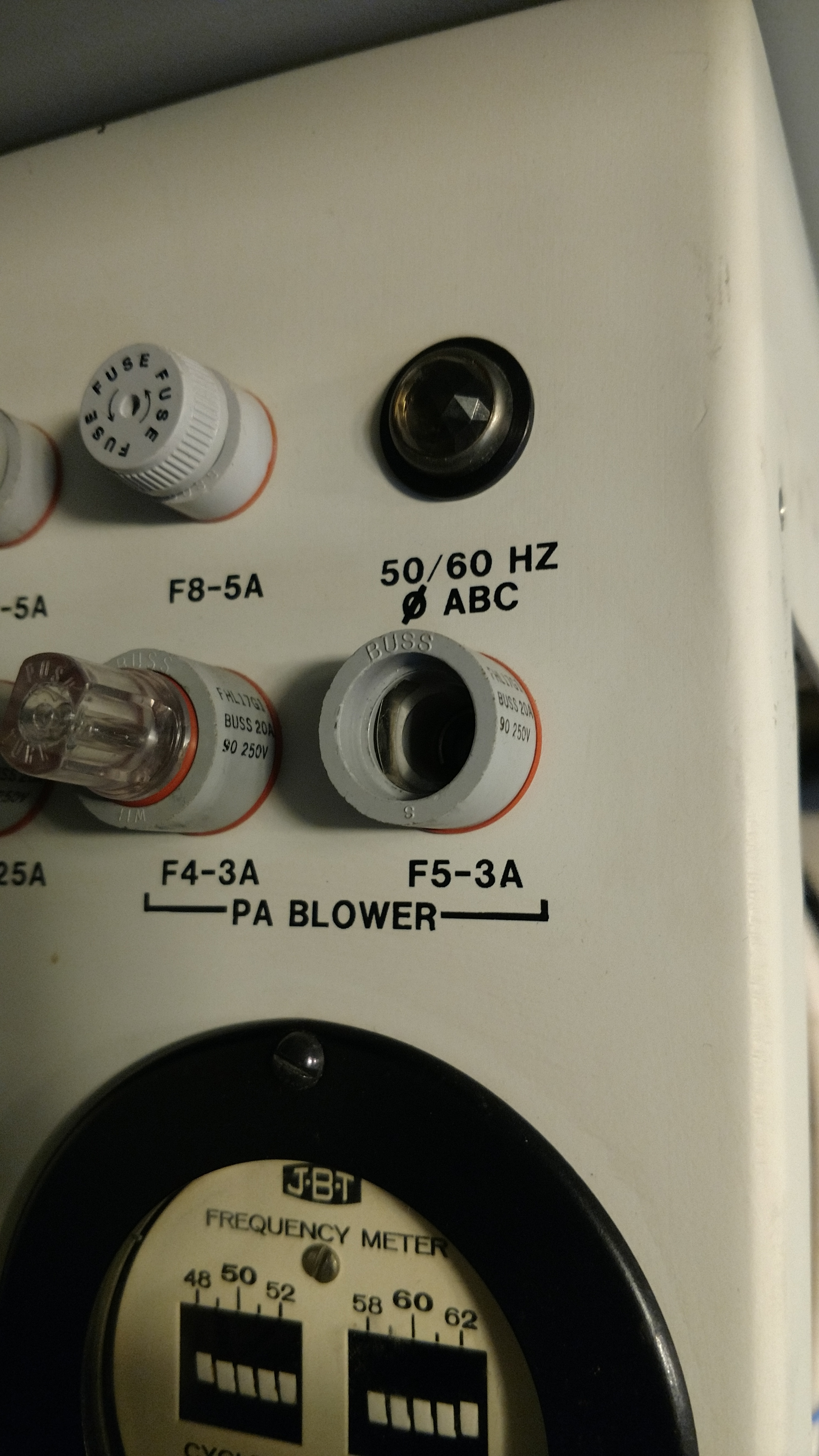

The Shelter blowers for PA cabinet are fused by two 3A fuses, F4 & F5. They come on when the Main breaker is on, which means the blowers run 100% of the time even if no other equipment in the shelter it turned on. To prevent the blowers from running constantly, I had removed the fuse for F5. This resulted in the blowers not operating, but it wasn't an optimal solution for the days when I needed the vents open and the blowers running. I'd blown a couple of fuses just inserting and removing them due to arcing. I decided to replace the fuse with a circuit breaker similar to those at the bottom of the power entry panel. That way I could easily make/break the blowers power without arcing or continuing to blow fuses.
